Small Water Turbine Hydro Turbine Kaplan Turbine

Short Description:

Port:	Chongqing, China
Production Capacity:	35 Sets/Year
Payment Terms:	L/C, T/T, D/P, Western Union, Paypal, Money Gram

Output Type:	AC Three Phase
Size:	Medium
Type:	Vertical Hydro Generator
Water Head:	2m – 70m
Capacity:	1000kw – 100MW
Runner Material:	Zg06cr13ni4mo

Send email to us

Product Detail

Product Tags

Basic Info.

Frequency

50Hz.60Hz

Trademark

Transport Package

Standard Exporting Wooden Box

Specification

Kaplan turbine generator unit

Origin

China

HS Code

8502390010

A. Product Description:

Product Name	Kaplan Turbine
Water Head	2m-70m
Capacity	1000kw-100MW

Small Water Turbine Hydro Turbine Kaplan Turbine
B. Parts of Projects for Reference:

Outstanding Projects
1	Own 15 patents for Pelton Turbine.
2	Have the capability of calculating and developing the core technology of bucket linear of pelton turbine runner.

1	The highest water head pelton turbine till 2018 in Asia TianHu HEPP, Guilin, Guangxi (Water Head: 1022.4M, Unit Capacity: 15MW)
2	The four-nozzles vertical shaft set pelton turbine with high water head & high capacity in China Xiaogou HEPP, Kangding, Sichuan (Water Head: 938M, Unit Capacity: 27MW)
3	The First horizontal six-nozzles set pelton turbine in China Mahuanggou HEPP, Baoxing, Sichuan (Water Head: 236M, Unit Capacity: 8MW)
4	The Biggest horizontal pelton turbine set till now in China Lianghekou HEPP, Kangding, Sichuan (Water Head: 432M, Unit Capacity: 15MW)
5	The First vertical five-nozzles set pelton turbine in China Wangbao HEPP, Jiulong, Sichuan (Water Head: 185M, Unit Capacity: 6.3MW)
6	The First vertical six-nozzles set pelton turbine in China (turbine runner is designed and manufactured by Lisong) Gequhe II HEPP, Qinghai (Water Head: 374M, Unit Capacity: 27MW)
7	Vertical francis turbine (The distrubitor and runner has not been replaced for 8 years till now). Furonghe HEPP, Guilin (Water Head: 200M, Unit Capacity: 12.5MW)

Horizontal Single Runner 1 Nozzle Pelton Turbine
No.	Name of plant	Capacity	Head Water	Turbine Model	Generator Model	Completed time
No.	Name of plant	(KW)	(M)	Turbine Model	Generator Model	Completed time
1	Xiangling HEPP, Sichuan	2×2500	410	CJA237-W-135/1×10.5	SFW2500-10/1730	2004.01
2	Hejiazhai HEPP, Guizhou	2×3200	535	CJA237-W-125/1×10	SFW3200-8/1730	2004.11
3	Shenyuehe HEPP, Sichuan	2×3200	570	CJA237-W-125/1×9.5	SFW3200-8/1730	2005.01
4	Danikou III HEPP, Sichuan	2×2500	485	CJA237-W-120/1×9.2	SFW2500-8/1730	2005.02
5	Daguan HEPP, Yunnan	2×2500	390	CJA237-W-105/1×11	SFW2500-8/1730	2005.03
6	Menghe HEPP, Sichuan	1×2500	185	CJA237-W-125/1×13.5	SFW2500-14/1730	2007.07
7	Dulanggou II HEPP, Sichuan	2×2500	390	CJA237-W-130/1×11	SFW2500-10/1730	2008.01
8	Hongbagumu HEPP, Sichuan	2×3200	601	CJ1050-W-130/1×9.0	SFW3200-8/1730	2008.06
9	Biaoshuiya HEPP, Yunnan	2×2500	625	CJ1050-W-130/1×8.0	SFW2500-8/1730	2008.07
10	Aijiawan II HEPP, Guangxi	2×3200	516	CJA237-W-120/1×10	SFW3200-8/1730	2009.02
11	Dulanggou I HEPP, Sichuan	2×3000	520	CJA237-W-120/1×10	SFW3000-8/1730	2009.03
12	Lamudai III HEPP, Sichuan	2×2000	423	CJA237-W-110/1×9	SFW2000-8/1730	2009.06
13	Qingshuihe HEPP, Sichuan	2×2000	313.5	CJA475-W-118/1×12	SFW2000-10/1730	2009.07
14	Tuyuhe HEPP, Hubei	2×2000	902	CJ1050-W-120/1×5	SFW2000-6/1430	2009.09
15	Chuba HEPP, Sichuan	2×4000	458	CJ550-W-142/1×12.5	SFW4000-8/2860	2010.04
16	Landong II HEPP, Guilin	3×3200	415	CJ475-W-125/1×12.5	SFW3200-10/1730	2014.05
17	Qingbei HEPP, Guilin	2×2250	273	CJ475-W-110/1×13.5	SFW2250-10/1730	2014.05
18	Bugaotan HEPP, Guilin	2×2250	262	CJ475-W-125/1×14	SFW2250-12/1730	2015.05
19	Sizhishan HEPP, Sichuan	2×1600	294	CJ475c-W-110/1×12	SFW1600-10/1430	2016.02
20	Wayaosanchahe HEPP, Yunnan	2×3200	623	CJ1050-W-133/1×9.0	SFW3200-8/1730	2017.01
21	Dagou HEPP, Sichuan	2×4000	900	CJ1050-W-160/1×7.5	SFW4000-8/1730	2019.01
Horizontal Single Runner 2 Nozzles Pelton Turbine
No.	Name of plant	Capacity	Head Water	Turbine Model	Generator Model	Completed time
No.	Name of plant	(KW)	(M)	Turbine Model	Generator Model	Completed time
1	Liyuhe HEPP, Yunnan	2×6300	590	CJA237-W-128/2×9.5	SFW6300-8/2150	2004.11
2	DaihuangGou HEPP, Sichuan	2×4000	440	CJA237-W-110/2×9	SFW4000-8/1730	2004.01
3	Liangchahe HEPP, Sichuan	2×3200	320	CJA237-W-120/2×10.5	SFW3200-10/1730	2005.01
4	Lamahe HEPP, Sichuan	1×5000	685	CJA237-W-140/2×7.0	SFW5000-8/2150	2005.07
5	Hongyan II HEPP, Guizhou	2×4000	486.6	CJA237-W-118/2×8.5	SFW4000-8/1730	2005.12
6	Niujing HEPP, Sichuan	2×3200	315	CJA237-W-120/2×10.5	SFW3200-10/1730	2005.12
7	Jiepaihe I HEPP, Yunan	2×3200	320	CJA237-W-115/2×10.8	SFW3200-10/1730	2006.01
8	Fengdianhe II HEPP, Yunnan	2×6300	870	CJ1050-W-120/2×6.8	SFW6300-6/1730	2007.01
9	Yongxing HEPP, Yunan	2×4000	350	CJA237-W-100/2×10.5	SFW4000-8/1730	2007.11
10	Mugou I HEPP, Sichuan	2×3200	390	CJA237-W-105/2×9	SFW3200-8/1730	2007.12
11	Qingshuihe HEPP, Sichuan	2×3200	220	CJA475-W-116/2×13.5	SFW3200-8/1730	2008.06
12	Bata HEPP, Sichuan	2×5000	375	CJA237-W-128/2×11.5	SFW5000-10/2150	2008.07
13	Chuba HEPP, Sichuan	2×8300	458	CJ325-W-142/2×12.5	SFW8300-10/2600	2008.09
14	Lvshuitang HEPP, Yunan	2×5000	322	CJA237-W-120/2×12.5	SFW5000-10/2150	2008.11
15	Fengxi HEPP, Chongqing	2×3200	271	CJA475-W-110/2×12	SFW3200-10/1730	2008.11
16	Rekuhe II HEPP, Sichuan	2×5000	270	CJA475-W-130/2×14.5	SFW5000-12/2150	2008.12
17	Rekuhe III HEPP, Sichuan	2×6500	321	CJA475-W-140/2×14.5	SFW6500-12/2150	2008.12
18	Pingdenghoushan HEPP, Sichuan	2×5000	316	CJA237-W-118/2×12.8	SFW5000-10/2150	2009.08
19	Shangengzi II HEPP, Sichuan	2×8000	490	CJA237-W-145/2×11.5	SFW8000-10/2600	2009.09
20	Bajiaohe I HEPP, Yunan	3×5000	500	CJ550-W-118/2×9	SFW5000-8/2150	2009.01
21	Zhoubigou II HEPP, Sichuan	2×6300	380	CJ323-W-129/2×11	SFW5000-10/2150	2010.01
22	Huangkunshan HEPP, Sichuan	3×3200	224	CJA475-W-120/2×13.3	SFW3200-12/2150	2011.3
23	Zijihe HEPP, Yunan	3×5000	560	CJ550-W-120/2×8.5	SFW5000-8/2150	2011.05
24	Kazi HEPP, Sichuan	2×6750	295	CJA475-W-137/2×15.5	SFW6750-12/2600	2012.9
25	Haozigou III HEPP, Sichuan	2×8000	490	CJ325-W-145/2×11.5	SFW8000-10/2600	2016.03
26	Haizi II HEPP, Sichuan	2×5000	788	CJ1050-W-149/2×6.5	SFW5000-8/2150	2020.06
27	Longtou HEPP, Sichuan	2×12000	855	CJ1050-W-156/2×9.2	SFW12-8/2600	2020.09
Horizontal Single Runner 3 Nozzles Pelton Turbine
No.	Name of plant	Capacity	Head Water	Turbine Model	Generator Model	Completed time
No.	Name of plant	(KW)	(M)	Turbine Model	Generator Model	Completed time
1	Sanchahe HEPP, Sichuan	1×5000	250	CJ325-W-126/3×12.5	SFW5000-12/2150	2015.9
2	Bayi HEPP, Abazhou, Sichuan	2×10000	451	CJ496-W-142/3×11.3	SFW10-10/2600	Producing
3	Longtou HEPP, Ganzizhou, Sichuan	2×10000	615	CJ550-W-132/3×11	SFW10-8/2600	Producing
4	Dabaishu HEPP, Abazhou, Sichuan	2×12000	475	CJ496-W-146/3×11.6	SFW12-10/2860	Producing
Horizontal Double Runners 4 Nozzles Pelton Turbine
No.	Name of plant	Capacity	Head Water	Turbine Model	Generator Model	Completed time
No.	Name of plant	(KW)	(M)	Turbine Model	Generator Model	Completed time
1	Huodi HEPP, Sichuan	2×8000	340	2×CJA475-W-122/2×11.2	SFW8000-10/2600	2009.01
2	Ningjiahe HEPP, Xinjiang	2×6000	232	2×CJ322-W-122/2×12.5	SFW6000-12/2150	2009.05
3	Lianghekou HEPP, Sichuan	2×15000	432	2×CJ325-W-139/2×12.3	SFW15-10/2800	2013.2
Horizontal Double Runners 6 Nozzles Pelton Turbine
No.	Name of plant	Capacity	Head Water	Turbine Model	Generator Model	Completed time
No.	Name of plant	(KW)	(M)	Turbine Model	Generator Model	Completed time
1	Mafanggou I HEPP, Sichuan	3×8000	236	2×CJA475-W-122/3×11.8	SFW8000-12/2600	2012.8
Vertical 2 Nozzles Pelton Turbine
No.	Name of plant	Capacity	Head Water	Turbine Model	Generator Model	Completed time
No.	Name of plant	(KW)	(M)	Turbine Model	Generator Model	Completed time
1	Sanqiutian HEPP, Yunnan	2×6000	460	CJA237-L-146/2×10.5	SF6000-10/2860	2002.11
2	Duoluo HEPP, Sichuan	2×13750	890	CJ1050-L-160/2×9.8	SF12-8/2860	2015.07
3	Tianhu II HEPP, Guilin	2×15000	1022.4	CJ1050-L-170/2×9.5	SF15-8/2860	2015.09
Vertical 4 Nozzles Pelton Turbine
No.	Name of plant	Capacity	Head Water	Turbine Model	Generator Model	Completed time
No.	Name of plant	(KW)	(M)	Turbine Model	Generator Model	Completed time
1	Xiaogou HEPP, Sichuan	2×30000	938	CJ1050-L-163/4×9.5	SF30-8/3250	2010.03
2	Nianke HEPP, Sichuan	2×10000	445	CJ325-L-140/4×10	SF10-10/2860	2012.08
3	Yinglin HEPP, Sichuan	2×8500	319.7	CJ325-L-120/4×11.5	SF8500-10/2860	2012.07
Vertical 5 Nozzles Pelton Turbine
No.	Name of plant	Capacity	Head Water	Turbine Model	Generator Model	Completed time
No.	Name of plant	(KW)	(M)	Turbine Model	Generator Model	Completed time
1	Wangbao HEPP, Sichuan	1×6300	185	CJ475c-L-145/5×13.5	SF6300-16/2600	2015.5
Vertical 6 Nozzles Pelton Turbine
No.	Name of plant	Capacity	Head Water	Turbine Model	Generator Model	Completed time
No.	Name of plant	(KW)	(M)	Turbine Model	Generator Model	Completed time
1	BC HEPP, U.S.A	1×5200	228.6	CJ285-L-114.3/6×10	N/A	2011.12
2	Gequhe II HEPP, Qinghai	2×27000	374.2	CJ285-L-155/6×15	SF27-12/3900	2012.08
Francis Turbine
No.	Name of plant	Capacity	Head Water	Turbine Model	Generator Model	Completed time
No.	Name of plant	(KW)	(M)	Turbine Model	Generator Model	Completed time
1	Wangjiahe HEPP, Shaxi	3×3200	160	HLA253-WJ-71	SFW3200-6/1730	2004.01
2	Yunhe HEPP, Guangxi	3×1250	88	HLA339-WJ-60	SFW1250-6/1180	2006.01
3	Dazhanghe II HEPP, Guangxi	1×4000	92	HLJF2503-LJ-88	SF4000-8/2150	2008.03
4	Wanping HEPP, Sichuan	2×4000	152	HLA542-WJ-100	SFW4000-8/1730	2008.07
5	Mujiahewula HEPP, Guizhou	2×1000	61.5	HLA696-WJ-55	SFW1000-6/1180	2008.08
6	Xinglongrize HEPP, Sichuan	2×2500	100	HLD46-WJ-71	SFW2500-6/1430	2008.09
7	Zhuomujiu HEPP, Yunnan	2×2500	178	HLD54-WJ-80	SFW2500-6/1430	2008.09
8	Furonghe HEPP, Guilin	2×12500	200	HLA542-LJ-150	SF12.5-10/2860	2008.11
9	Pingshuijiang I HEPP, Guangxi	2×1600	90	HLD46-WJ-65	SFW1600-6/1430	2009.09
10	Leju HEPP, Guizhou	1× 2500	156	HLD54-WJ-80	SFW2500-6/1430	2010.8
11	Feishuiyan HEPP, Sichuan	2× 1000	120	HLD54-WJ-65	SFW1000-6/1180	2010.06
12	Pingshuijiang I HEPP, Guangxi	2×1600	90	HLD46-WJ-65	SFW1600-6/1460	2011.4
13	Junshan I HEPP, Guilin	2×3200	30.5	HL240-LJ-140	SF3200-20/3250	2014.3
14	Qishuping HEPP, Sichuan	2×1600	165	HL90-WJ-71	SFW1600-6/1430	2015.5
15	Dongtoutian HEPP, Guilin	3×1250	49.6	HLA551-WJ-60	SFW1250-6/1180	2016.12

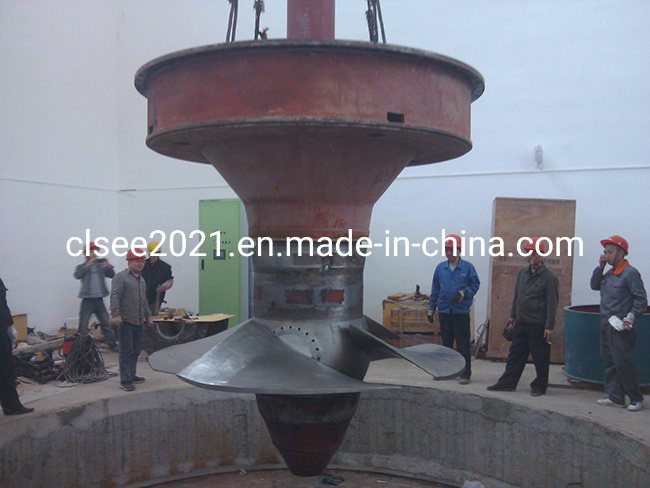

Kaplan Turbine
No.	Name of plant	Capacity	Head Water	Turbine Model	Generator Model	Completed time
No.	Name of plant	(KW)	(M)	Turbine Model	Generator Model	Completed time
1	Shiniuzui power plant, Sichuan	2×2000	13	ZDJP502-LH-180	SF2000-24/2600	2008.09
2	Yashui HEPP, Nanning	3×1250	8.5	ZD283/400-LH-180	SF1250-24/2600	2015.3
3	Shuikou HEPP, Nanning	3×1250	8	ZD283/400-LH-200	SF1250-28/2600	2015.4
4	Shuikou HEPP, Nanning	1×900	8	ZD283/400-LH-180	SF900-28/2600	2015.04
5	Tuhuangshui power plant, Sichuan	2×3200	11.9	ZZ660-LH-230	SF3200-28/3600	2010.08
6	Daheba HEPP, Sichuan	2×2500	6	ZZ400-LH-305	SF2500-44/4500	2010.12
7	Zhongjuntan HEPP, Guangxi	2×4500	12.5	ZZ283/400-LH-250	SF4500-28/3900	2015.4
Foreign Projects
No.	Name of plant	Capacity	Head Water	Turbine Model	Generator Model	Completed time
No.	Name of plant	(KW)	(M)	Turbine Model	Generator Model	Completed time
1	Chile HEPP, Chile	1×1200	190	CJA237-W-92/2×9.2	SFW1200-10/1430	2009.03
2	Ricardo HEPP, Chile	1×2000	188.6	CJ325-W-110/2×11.8	SFW2000-12/1730	2010.05
3	Hidrolenna HEPP, Chile	3×2200	195	CJ325-W-112/2×12	SFW2200-12/2600	2010.01
4	Mancahuara HEPP, Peru	1×1600	248	CJA475-W-105/2×9	SFW1600-12/1730	2010.01
5	PCH HEPP, Peru	1×1680	28	HLA551C-W-105	SFW1680-14/1730	2011.01
6	Additional Capacity, Canada	1×4250	298	CJ475-W-105/1×12.5	Efficiency Improved Runner	2009.05
7	Mears HEPP, Canada	1×3800	311	CJ325-W-100/2×11.5	Efficiency Improved Runner	2012.05
8	BC HEPP, U.S.A.	1×5200	228.6	CJ285-L-114.3/6×10	Efficiency Improved Runner	2011.12
9	Baker HEPP, U.S.A.	1×1650	231	CJ237F-W-670/3×8.0	Efficiency Improved Runner	2019.01
10	Beaver #4 HEPP, U.S.A.	1×1200	278.5	CJ496-W-132.1/1×10.5	Efficiency Improved Runner	2018.02
11	Beaver #3 HEPP, U.S.A.	1×630	102.6	CJ325-W-113/2×10.5	SFW630-20/1430	2018.08
12	Lassen Lodge HEPP, U.S.A.	1×5350	261.2	CJ325-W-143/2×15	SFW5350-16/2150	2015.7
13	Talla Bun HEPP, New Zealand	1×2150	240	CJ325-W-103/2×10.5	SFW2150-10/1730	2010.05
14	CEVHERS I HEPP, Turkey	2×4540	304	CJ325-W-139/2×12.5	SFW4540-12/2150	2009.11
15	CEVHERS II HEPP, Turkey	2×3450	296	CJ325-W-115/2×11	SFW3450-10/1730	2009.11
16	Yasil HEPP, Turkey	2×1600	47	HLA616-WJ-75	SFW1600-8/1430	2010.07
16	Yasil HEPP, Turkey	2×800	47	HLA616-WJ-55	SFW800-6/1180	2010.07
17	Havva HEPP, Turkey	3×2280	39.87	HLA551C-WJ-92	SFW2280-10/1730	2010.04
18	Georgia International Energy	3×4000	289	CJ322-W-130/2×12.4	Efficiency Improved Runner	2009.01
19	Sanhua Jidian HEPP, Indonesia	2×1800	42	HLA551-WJ-84	SFW1800-10/1730	2009.02
20	Keo Bac HEPP, Vietnam	2×900	304.2	CJ325-W-70/2×6	SFW900-6/1180	2013.05
21	JHANG HEPP, Pakistan	3×5000	403	CJ325-W-135/2×10.5	SFW5000-10/2150	2020.02
22	KHAN-ABAD-II, Afghanistan	3×3467	17.24	ZZD471-LH-185	SFW3467-20/3250	Producing

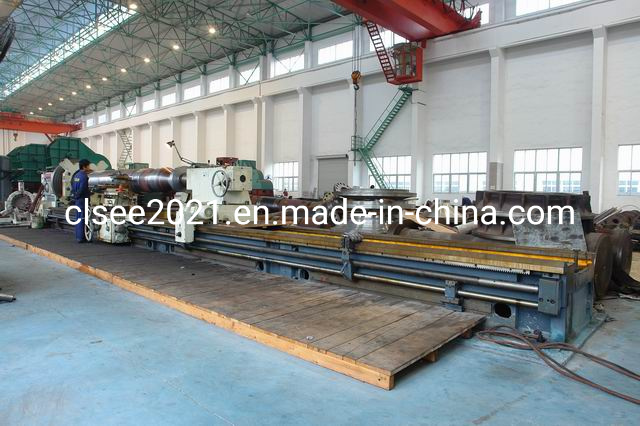

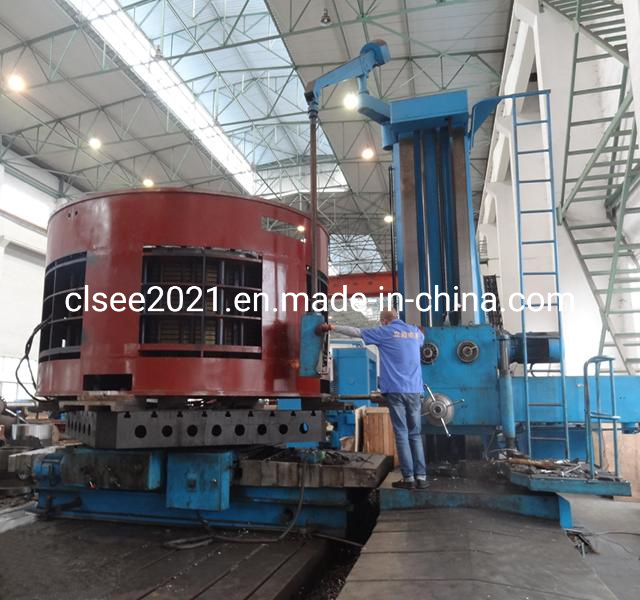

C. Parts of Equipment:

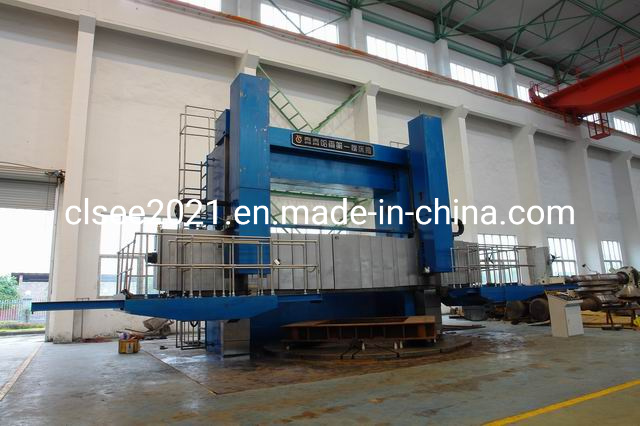

1. 5m Vertical Lathe F
Small Water Turbine Hydro Turbine Kaplan Turbine

2. 10m Horizontal Lathe
Small Water Turbine Hydro Turbine Kaplan Turbine

3. Boring Machine
Small Water Turbine Hydro Turbine Kaplan Turbine
4. 50T Travelling Crane

D. Patent Technology

E. After Market:
LISONG has a powerful team of installation and after-sales service built with experienced engineers, senior technicians and skilled workers. The team are quite skilled with installing, commissioning, maintaining, etc, which helps to built the bridge of reliability and friendship between customers and Lisong.
Normally when you are requiring, please let us know the details as follows, then we can provide the correct price for you.
1. Water head:___m
2. Water flow:___m³/s
3. Unit Capacity: ___kw
4. Number of unit:___set
5. Frequency: 50Hz or 60Hz
